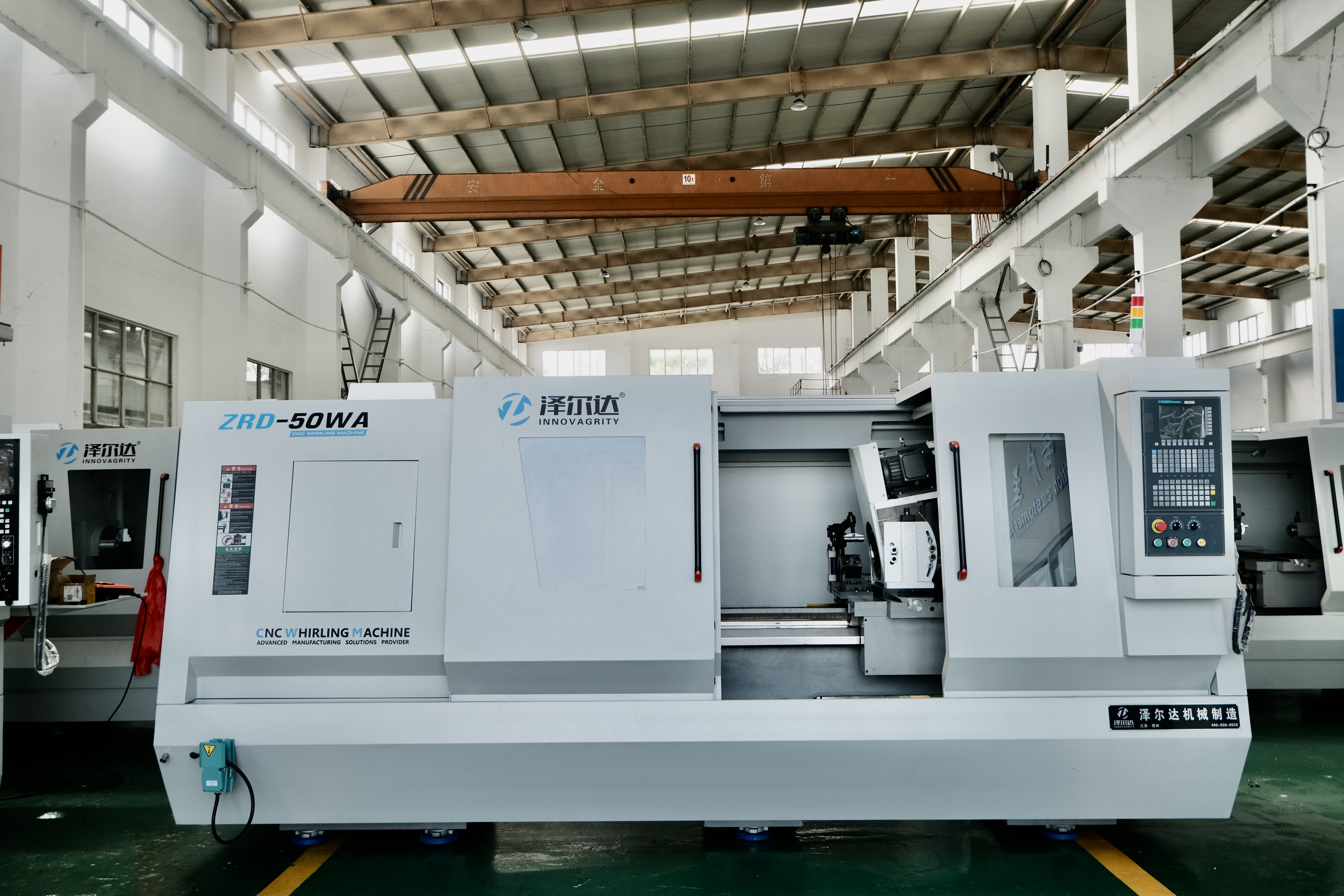

ZRD-46WA Ball Screw Whirling Machine Specification
Spindle (C-axis) output torque | > 4500N. M |
Spindle speed | 0-15rpm |
The diameter of the spindle through hole(3 sets whirling head ) | Ļ130mmćĻ180mmćĻ250mm |
The range of processing diameter | Ļ25mm -200mm |
The effective processing length | ļ¼6000mm |
Z-axis output torque | > 45N. M |
X-axis output torque | > 25N. M |
Processing accuracy (aspect ratio within 40) | P5 (Italy or Germany material) |
| Serial number | Name | Supplier manufacturer |
|---|---|---|
| 1 | Control system | Siemens |
| 2 | Spindle bearing | Germany FAG or SKF |
| 3 | Spindle bearing | NSK |
| 4 | Ball screw | Spain IPIRANGA |
5 | Spindle and Z-axis reduction servo motor | Siemens |
| 6 | Spindle rotary encoder | Renishaw, United Kingdom |
| 7 | X, Z axis grating | Spain Fage |
| 8 | Hydraulic control | Haimen Dongzhou |
| 9 | Servo jacking mechanism | Shanghai Lianheng |
| 10 | Spindle motor | Siemens |
| 11 | Matching sleeve | Humberg |
Machine base adopts integral casting, strong shock resistance, not easy to deformation.
Customized CNC rotary milling modular programming system, easy to operate.
The transmissions part of the machine tool adopts the high precision P4 level ball screw of the well-known domestic brand Nanzhu/Hanjiang.
Using the combination cutter head with machine clip, for 4.762 and above ball diameter, it can meet the raceway+oil groove and chamfer molding.
The machine adopts hard rail transmission structure, which can withstand large cutting and impact resistance.

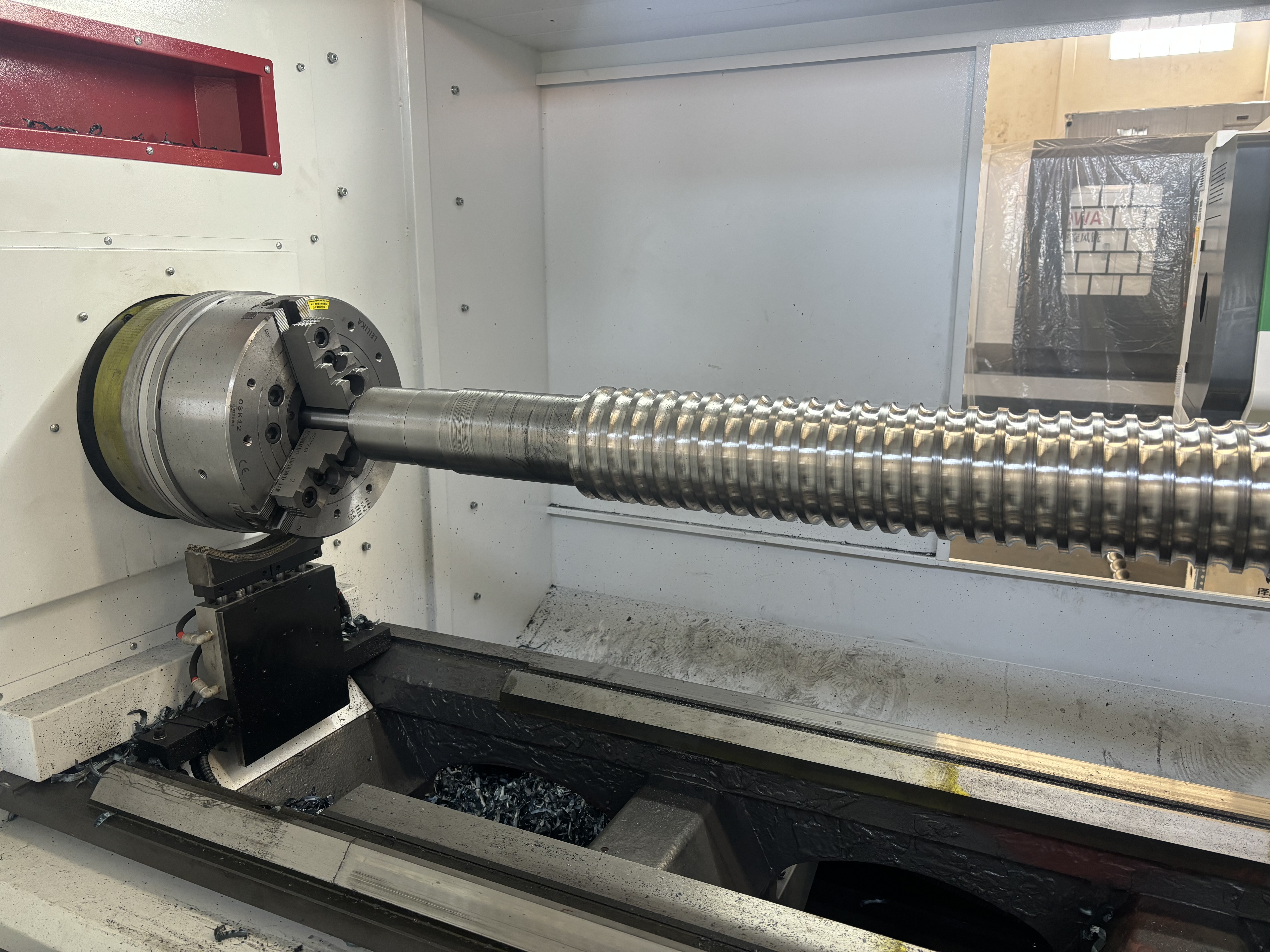

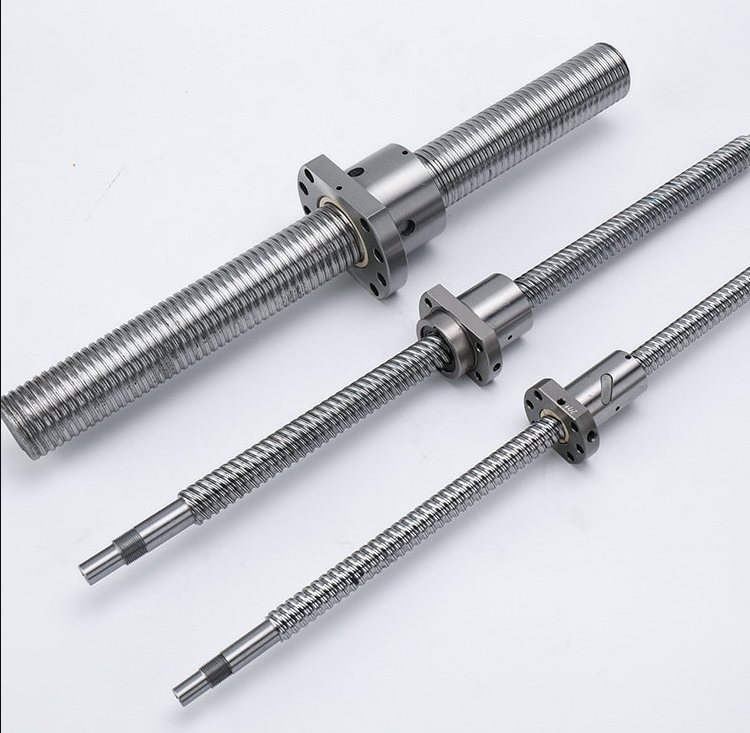

Can be used for all kinds of ball screw soft/hard milling, equipment with pitch compensation function.
This equipment can be selected according to customer products, center frame clamping form, in order to meet the size of the product adaptation processing.
Cutter head design adopts the scheme of compact and fine-tuning of tool bar, which is convenient for tightening of tool bar and consistency adjustment of tool tip rotation circle.
| Serial Number | Acceptance project | Accuracy requirements |
1 | Maximum turning diameter | 220mm |
2 | Maximum ball diameter (hard milling) | 3.5mm |
3 | X-axis travel | 220mm |
4 | Center height | 110mm |
5 | Distance between two centers | 750mm |
6 | Positioning accuracy | ā¤ 0.01mm |
7 | Repeated positioning accuracy | ā¤ 0.008mm |
8 | Rotary shaft positioning accuracy | ā¤ 5" |
9 | Rotary shaft repeated positioning accuracy | ā¤ 3" |
10 | Cutter shaft motor power | 3KW |
11 | Maximum speed of tool shaft | 1400-2800r/min |
| 12 | Maximum number of knives loaded | 6pcs |
| 13 | Cutting mode | inner cutting |
| 14 | Milling head cavity diameter | 70-90mm(optional) |
| 15 | Chuck size | A2-4 |
| 16 | Spindle bore | 52mm |
17 | Equipment voltage | 380V/50HZ |
