L400-PW
ZRD

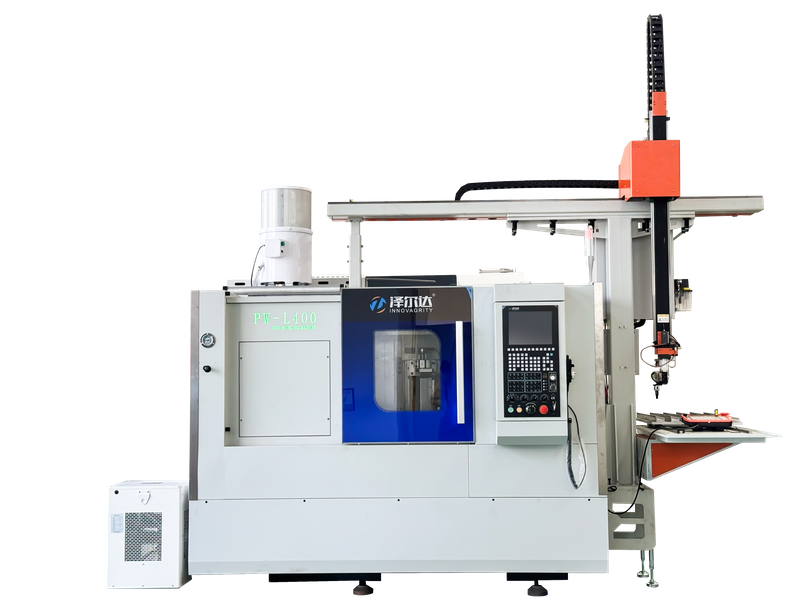

ZRD-L400-PW is a precision worm CNC whirling machine designed for worm shaft machining, miniature worm shafts, screw shafts, and high-accuracy thread production. Powered by advanced whirling technology, it replaces traditional grinding and multi-step milling with one-pass forming, delivering superior efficiency and accuracy.
Integrated worm thread whirling ensures stable, uniform forming and reduces vibration during high-speed machining.
The high-rigidity structure guarantees consistent precision for long-term, continuous production.
| Serial Number | Project | Accuracy Requirements |
1 | Maximum machining length | 250mm |
2 | Maximum maching diameter | 40mm |
3 | Tool type | Carbide/CBN |
4 | Minimum system resolution | 0.001mm |
5 | Spindle drive | motor spindle |
6 | Z/X control form | Servo-driven position control |
7 | Maximum passing diameter of the spindle | 45mm |
8 | Spindle motor power | 5.5KW |
9 | Tail seat function | Servo-drive |
10 | Maximum spindle speed | 300r/min |
11 | Knife shaft motor power | 2.4KW |
| 12 | Maximum speed of the blade shaft | 4000-6000r/min |
| 13 | Maximum number of knives loaded | 0-30° |
| 14 | Cutting mode | inner cutting |
| 15 | Internal diameter of milling head | 55mm |
| 16 | Total power of equipment | 16KW |
| 17 | Equipment weight | 3.5kg |
18 | Equipment size | 2400*1700*1800 |
The machine is engineered as a CNC thread whirling machine, enabling high-speed machining with reduced cycle times.
Ideal for mass production requiring precision and repeatability.
The ZRD-L400-PW is ideal for manufacturers producing:
ZRD is a professional CNC equipment manufacturer offering factory-direct price and stable production capacity.
We support:
Custom tooling
Custom thread forms
Special material solutions
OEM/ODM label customization
All ZRD machines undergo:
72-hour continuous running test
Precision measurement test
Full performance verification
We offer:
Online video guidance
Remote debugging
On-site installation (optional)
Fast spare parts supply
Customer Case Examples
ZRD provides comprehensive support for all CNC whirling machines:
12–24 months warranty
Quick spare parts delivery
Scheduled maintenance service
Operation & programming training
Long-term technical support

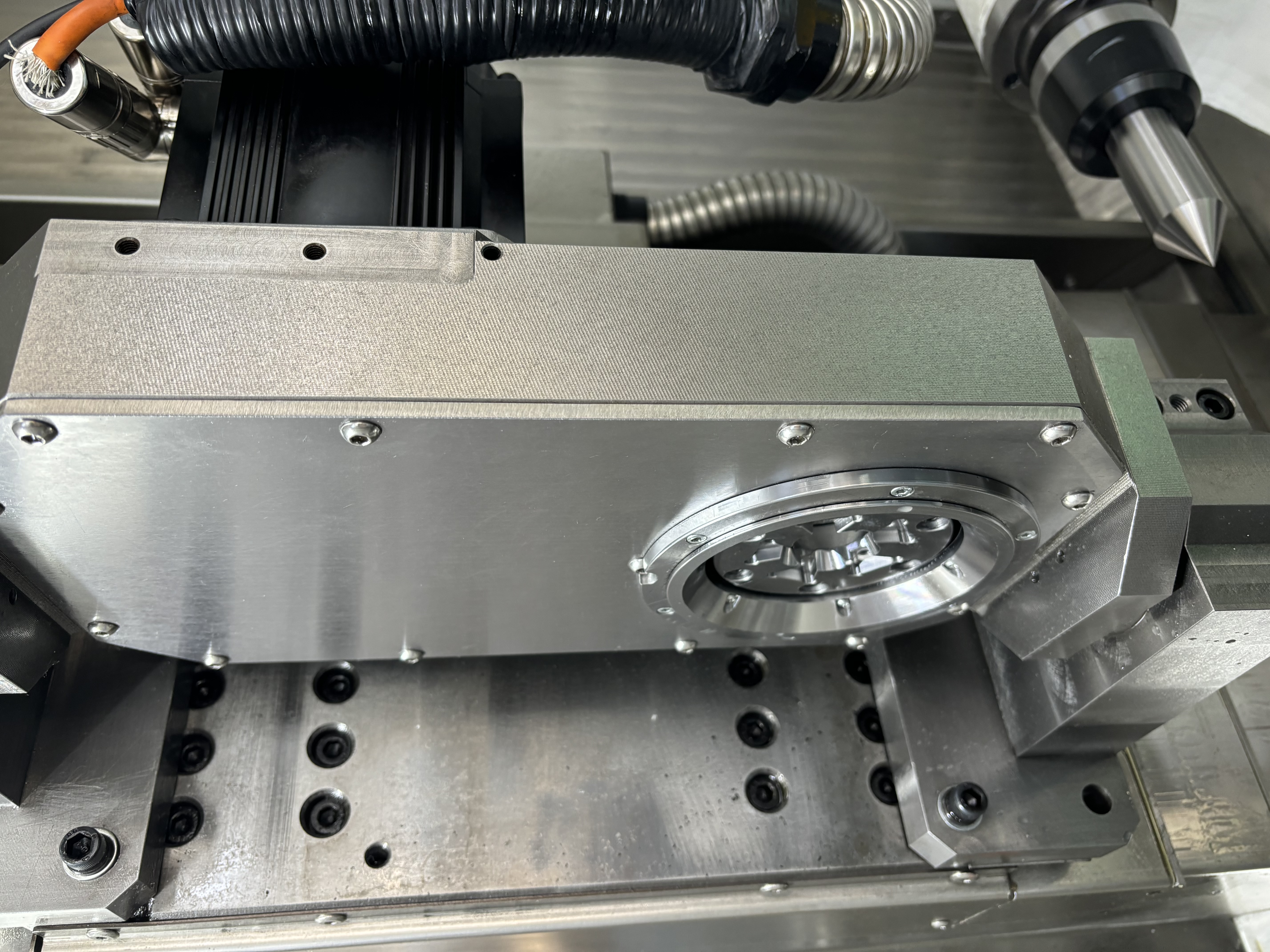

Partial Display

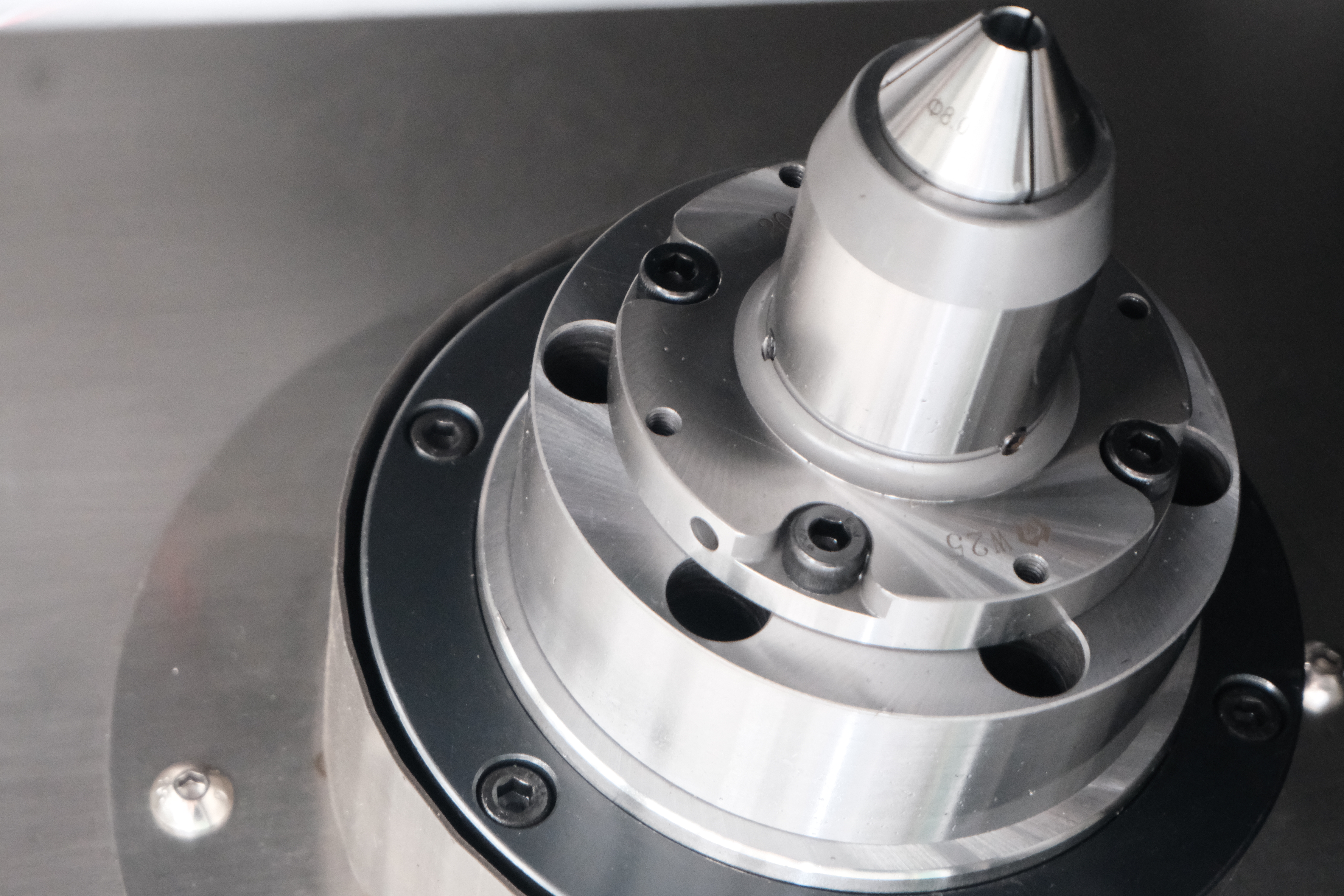

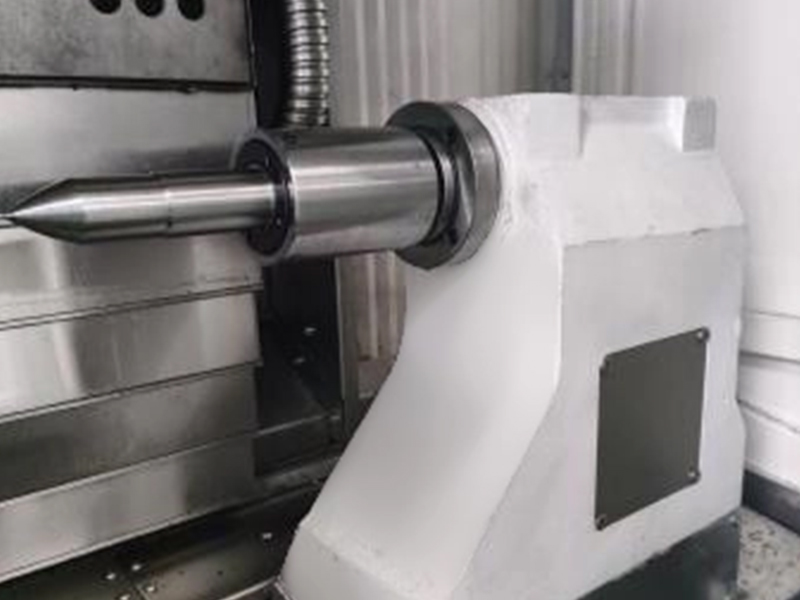

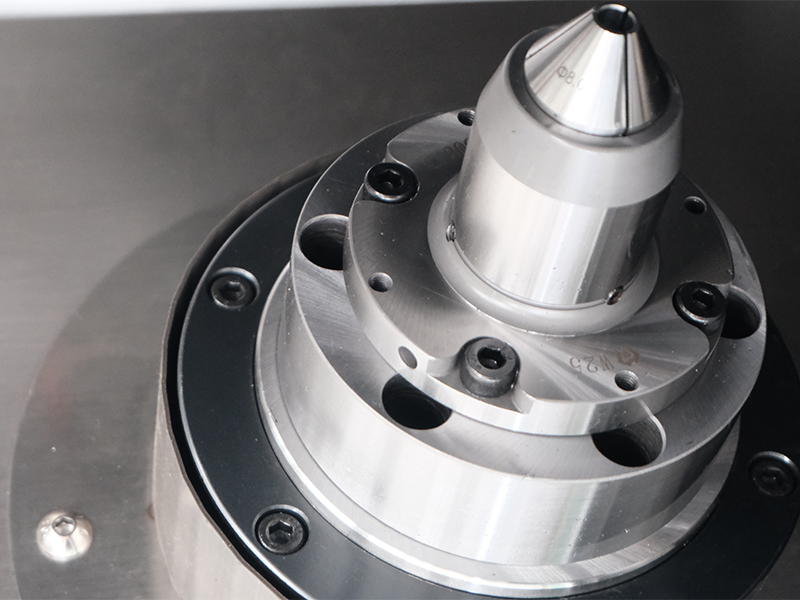

Servo tailstock, programmable control, automatic loading and unloading mechanism to enhance processing flexibility

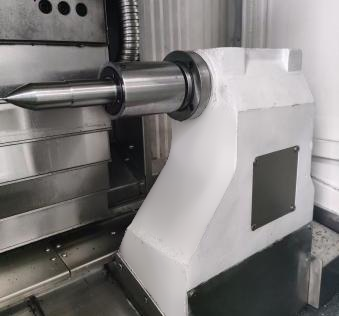

Partial Display
Body accuracy within 0.005m Adjustable clamping accuracy within 0.005mm
Product Display

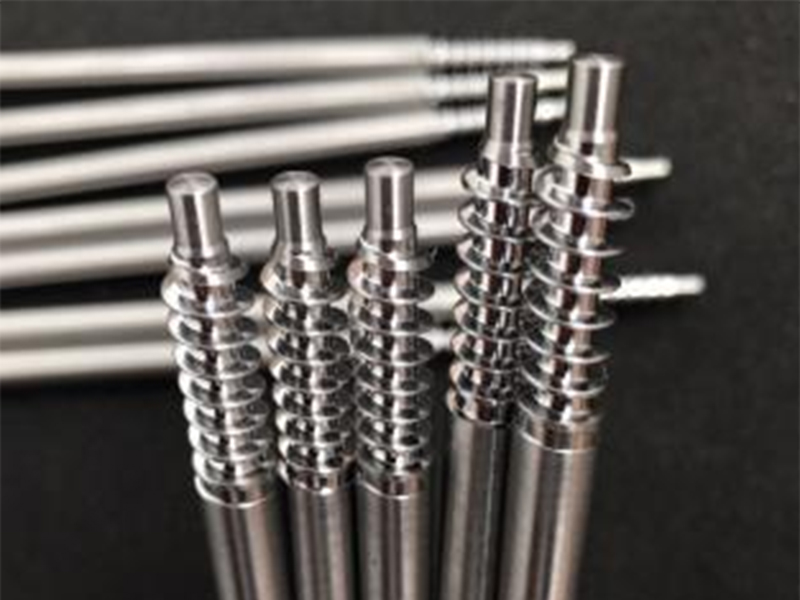

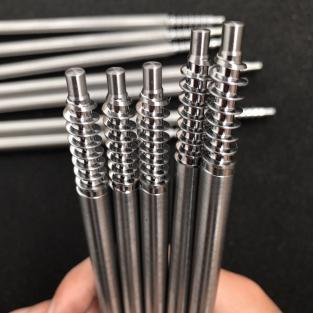

Single head worm gear product, with a tooth surface smoothness of Ra0.8, accuracy meets DIN-3974-7 level
A Precision Worm CNC Whirling Machine is a specialized CNC tool designed to produce high-accuracy worm shafts and threads. It uses the whirling process to achieve superior surface finish, consistent pitch, and excellent dimensional accuracy, making it ideal for gear manufacturing, automotive parts, and precision machinery industries.
This machine can process a wide range of materials, including alloy steel, stainless steel, carbon steel, brass, and aluminum alloys. The high-speed whirling process ensures stable cutting even with hard-to-machine materials.
Unlike traditional single-point cutting, CNC whirling uses multiple cutting edges rotating around the workpiece at high speed. This reduces machining time, improves thread precision, and extends tool life. It is especially suitable for deep threads and long worm shafts.
High accuracy for complex worm and screw profiles
Faster production speed compared to conventional turning
Excellent surface finish without secondary grinding
Longer tool life thanks to reduced cutting pressure
Lower noise and vibration during machining
Common industries include:
Gear manufacturing
Automotive components
Aerospace parts
Robotics and automation equipment
Medical device manufacturing
Depending on the model, a Precision Worm CNC Whirling Machine can process worm shafts up to 400mm or longer. Custom configurations are available for extended lengths.
Yes. With advanced CNC control and programmable settings, the whirling machine can produce custom pitch, lead angle, and tooth profiles according to customer drawings or CAD models.
Regularly clean chips and debris from the cutting area
Monitor cutting tool wear and replace inserts promptly
Check spindle alignment and lubrication systems
Update CNC software and parameters for optimal accuracy
